There are few kitchen frustrations as specific as the one you’re feeling right now. The refrigerator is cold, the ice maker has dutifully produced a full bin of fresh ice, but when you press the dispenser, you’re met with a disappointing hum… or worse, complete silence. The ice is right there, but it simply won’t come out.
Before you resign yourself to an expensive repair call, take a breath. The auger—that corkscrew-like blade responsible for moving ice to the dispenser chute—is often stopped by a simple, fixable issue. This guide provides a definitive step-by-step diagnostic path to identify and fix the exact cause of your stuck auger. By following these steps, you will be able to solve the problem in over 90% of cases, or at the very least, confidently know when it’s time to call in a professional.
Quick Diagnostic Table
For those who want a fast-track to the solution, this table can help you quickly identify the likely culprit based on the symptoms you’re observing.
| Symptom You Observe | Most Likely Cause | DIY Difficulty Level |
| The dispenser motor makes no sound at all. | The dispenser lock is on; Faulty dispenser switch. | Easy to Medium |
| The motor hums or buzzes, but the auger blade doesn’t turn. | An ice jam or clog; Frozen-solid ice bucket. | Easy |
| You hear a loud grinding, clicking, or crunching noise. | A single jammed ice cube; A broken or stripped drive coupling. | Easy to Medium |
| The auger turns intermittently, weakly, or struggles to turn. | A failing auger motor; Inconsistent power. | Advanced |
| Absolutely nothing happens, and you hear no sounds. | A completely failed motor; A control board issue. | Advanced |
Critical Steps Before You Start
This is the most important section. Do not skip these steps. Any attempt to diagnose or repair your ice dispenser must begin with these safety precautions to prevent injury and damage to your appliance.
- Unplug the Refrigerator: Do not just turn off the ice dispenser or rely on the control panel. Go to the wall outlet and physically unplug the refrigerator’s power cord. If the plug is not accessible, go to your home’s main electrical panel and switch off the circuit breaker that supplies power to the refrigerator.
- Prepare for Water: Have a few towels ready. The moment you remove the ice bin from the freezer, the ice will begin to melt, and some spillage is almost guaranteed. A towel inside the freezer and on the floor can save you a cleanup headache.
- Empty the Ice Bin: This step is mandatory for nearly all diagnostics. Carefully slide the ice bin out of the freezer. Empty the entire contents into a sink, a cooler, or a large bowl. This will allow you to inspect the auger and the drive mechanism.
Understanding Your Ice Dispenser
Knowing the parts of the system will help you understand why it fails. Your ice dispenser is a simple but effective mechanical system.
The Auger
This is the plastic or metal corkscrew-like blade that sits inside the ice bin. Its only job is to rotate, collect cubes, and push them toward the dispenser opening.
The Auger Motor
This is the powerhouse of the operation. It’s a small but powerful motor typically located on the back wall of the freezer compartment, though on some models, it’s mounted inside the freezer door. When activated, it provides the rotational force needed to turn the auger.
The Drive Coupling
This is the crucial link between the motor and the auger. It’s often a small plastic or metal piece that connects the motor’s rotating shaft to the socket on the back of the ice bin. Because it’s designed to handle a lot of torque, it can sometimes be the first part to break or strip under strain.
The Dispenser Switch (Actuator)
This is the component that tells the motor to start. It’s a small micro-switch located directly behind the dispenser paddle (the lever you press with your glass). When you press the paddle, it depresses a button on the switch, completing an electrical circuit and sending power to the auger motor.
Essential Tools for Diagnosing and Fixing Your Auger
You won’t need an entire workshop for this job. Most auger issues can be solved with tools you likely already have.
- Basic Toolkit:
- Phillips and flathead screwdrivers
- A small socket set (often a 1/4″ or 5/16″ socket is needed for motor mounts)
- Towels
- A flashlight
- Advanced Tools (for electrical testing):
- A multimeter is essential if you need to test the motor for failure.
Step-by-Step Diagnostic Guide
Follow these steps in order. Start with the easiest potential problems and progress to the more complex diagnostics.
Step 1: Check the Obvious First (No Tools Required)
Before you take anything apart, let’s eliminate the simple oversights that trip up many homeowners.
Is the Dispenser Lock On?
Almost every refrigerator with a door dispenser has a child-lock or dispenser-lock function to prevent accidental spills. This is often indicated by a small light on the control panel. Find the button labeled “Lock,” “Control Lock,” or similar (you may need to press and hold it for three seconds to deactivate). Test the dispenser again.
Is the Ice Bucket Seated Correctly?
The auger motor cannot engage with the ice bin unless the bin is perfectly seated. An improperly installed bin is a very common cause of a non-turning auger.
Fix: Remove the ice bin completely. Now, reinstall it, making sure it slides all the way back and clicks or settles firmly into place. You should feel it engage with the drive coupling at the back. Try the dispenser again.
Step 2: The Most Common Culprit A Clogged or Jammed Auger
If your motor is humming but nothing is moving, you almost certainly have an ice jam. The motor has power but is being physically prevented from turning.
How to Clear a Jam Safely
- With the ice bucket removed and emptied, look at the auger blades and the opening at the front or bottom of the bin. You will likely see several ice cubes that have melted and refrozen into a single, large clump, physically blocking the auger.
- Use a sturdy plastic or wooden spoon to firmly but carefully break this clump apart. WARNING: Never use a screwdriver, knife, or other sharp metal object for this task. You can easily puncture the plastic bin or damage the auger blades, leading to a much more expensive repair.
- If the entire bin of ice has become one solid block (this can happen after a power outage or if the freezer door was left ajar), your best option is to empty the ice and allow the bucket and auger to thaw completely at room temperature before refilling.
- Once cleared, reinstall the bucket, give it a few hours to produce new ice, and test the dispenser.
Step 3: Inspecting the Dispenser Switch and Actuator Paddle
If there is absolutely no sound when you press the dispenser, the switch may not be sending the signal.
The “Click Test”
- Press the dispenser paddle gently and listen very closely. You should hear a faint but distinct “click” as the actuator makes contact with the micro-switch behind it.
- No Click? If you don’t hear a click, the plastic paddle itself might be broken, or it may have slipped out of alignment and is no longer pressing the switch button. Visually inspect the paddle mechanism.
- Click is Heard? If you hear the click but still get no motor activity, the switch itself could be faulty (an electrical failure). You can confirm this with a multimeter, but at this point, you’ve confirmed the issue is likely electrical, not mechanical.
Step 4: Is the Auger Motor Faulty?
If there’s no jam and the switch seems to be working, attention turns to the motor itself. The sound it makes (or doesn’t make) is your primary clue.
- Humming Sound: The motor is getting power but has failed internally. The gears may be stripped, or the motor seized. It will need to be replaced.
- Complete Silence: If the switch is clicking but the motor is silent, it’s either not receiving power (a wiring or control board issue) or has completely failed electrically.
Step 5: Advanced Diagnostics – Testing the Motor with a Multimeter
This step will give you a definitive answer on the motor’s health.
How to Safely Test the Auger Motor
Safety Warning: Ensure the refrigerator is UNPLUGGED.

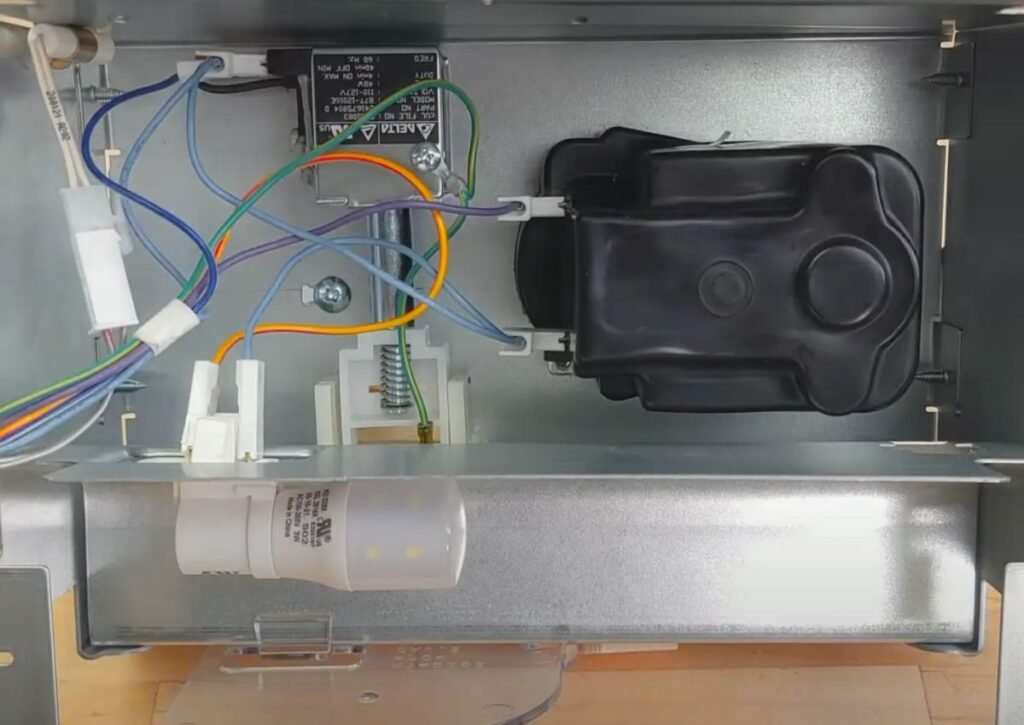

Access the Motor: You will need to locate the motor. On many models, it is behind a small panel at the back of the freezer, near where the ice bin connects. On others, especially side-by-side models, it may be inside the freezer door itself, requiring you to remove the interior door panel.
Disconnect the Wiring Harness: The motor will have a plastic connector with two or more wires leading to it. Carefully unclip this wiring harness to expose the motor’s electrical terminals.
Set the Multimeter: Turn your multimeter to the ohms setting (Ω) for measuring resistance.
Test for Continuity: Touch one probe of the multimeter to each of the motor’s two electrical terminals. A functional motor should give you a reading of resistance, typically between 40 and 200 ohms. An infinite reading (“OL” or “1”) means the electrical pathway inside the motor is broken, and the motor must be replaced.
Step 6: Checking the Drive Coupling and Gears
This addresses a mechanical failure point that often occurs after a severe jam.
How to Inspect for Wear and Tear
With the ice bin removed, carefully inspect the small drive coupling on the motor shaft and the corresponding socket on the back of the bin. These parts are often made of plastic and can crack, shear off, or become stripped from the torque of the motor trying to turn a jammed auger. If you see visible damage on either part, it must be replaced. Fortunately, this is often an inexpensive and straightforward fix.
How to Prevent Future Auger Jams
- Use Ice Regularly: Using your ice dispenser daily is the best way to keep ice flowing freely and prevent cubes from melting and sticking together.
- Break Up Ice Clumps: If you don’t use the dispenser often or are going on vacation, make it a habit to remove the ice bin once a week and give it a good shake. This will break up any clumps before they become a major blockage.
- Check Freezer Temperature: A freezer that is too cold (well below 0°F) can cause “freezer burn” on the ice cubes, which makes them more prone to clumping. Maintain a consistent temperature of 0°F (-18°C) for best results.
When the DIY Fix Isn’t Enough: Knowing When to Call a Professional
While you can solve most auger issues yourself, it’s crucial to know your limits. Call a professional if:
- You suspect a control board issue: If the dispenser switch clicks, the motor tests good for continuity, and there are no jams, but the motor still gets no power, the main control board of the refrigerator is likely the culprit. This is not a typical DIY repair.
- You see burnt, frayed, or damaged wiring anywhere in the dispenser system.
- You’ve diagnosed a failed motor or drive coupling but are not comfortable with the disassembly process required to replace it.
- You have tried all of these steps, and the problem still persists.
FAQ: Your Auger Questions Answered
- How much does a new auger motor cost?
- Depending on the refrigerator model, a replacement auger motor typically costs between $50 and $150 for the part itself.
- Can I replace just the drive coupling?
- Yes. In most cases, the drive coupling is sold as a separate, inexpensive part. It is a common wear-and-tear item designed to fail before the more expensive motor does.
- Why did my ice bucket freeze into one giant block of ice?
- This is almost always caused by a temperature fluctuation. This can happen during a power outage or if the freezer door was left slightly ajar for an extended period, causing the surface of the cubes to melt and then refreeze into a solid mass.
- Is it normal for the auger motor to get warm?
- Yes, it’s normal for the motor to feel slightly warm to the touch after dispensing a large amount of ice. However, if it feels excessively hot or smells of burning plastic, unplug the refrigerator immediately as the motor is likely failing.
